LED Strip Light Manufacturer & Supplier in China
LED strip lighting for contractors, distributors and project buyers. Explore product options, compare specifications and discuss OEM or project supply requirements with CST Lighting.
For contractors, lighting designers and distributors.
Choose by requirement
Find LED Strip Lights by Project Need
Start with what the strip has to do. Each type below links to specifications and custom options.
Dimmable LED Strip
Brightness control for commercial and residential lighting projects.
Programmable / IC LED Strip
Individually controlled pixels for chasing and moving effects.
RGB / RGBW LED Strip
Color-changing lighting for accents, displays and project features.
Waterproof LED Strip
IP rated strips for bathrooms, kitchens and outdoor use.
Motion Sensor Lighting
Strip and sensor combinations for cabinets or automated lighting systems.
COB LED Strip
Continuous looking light output for concealed and profile installations.
High Voltage 230/240V
Long single runs from mains power without a low voltage driver.
Long Run LED Strip
Longer continuous runs without voltage drop and feed design considered.
Tensão Run length
LED Strip Series
Choose LED Strip Lights by Chip Type
Pick the chip by brightness, color and budget. Every type is available in custom length, color and IP rating.
A larger chip with higher output per LED. The standard choice for RGB and RGBW color changing strips.
A high brightness chip for single color strips where output matters, such as display and task lighting.
The widest range of LED densities and PCB widths, for general and architectural lighting.
Available in CRI 75, 80 and 90 Ra for color sensitive applications.
Continuous, dot-free lighting for coves, cabinets and architectural applications.
Compare all specifications
Type | LEDs per meter | PCB width (mm) | Tensão | Classificação IP | Colors and CCT |
|---|---|---|---|---|---|

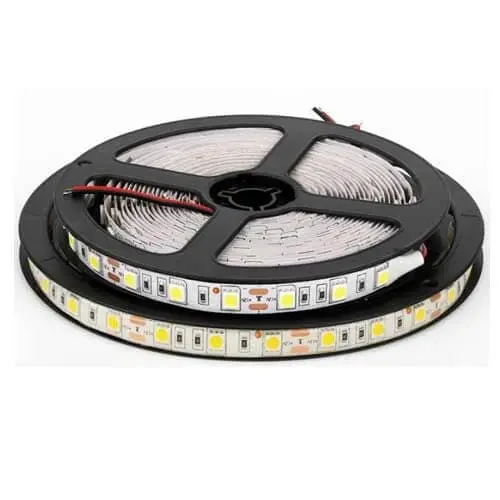

SMD 5050 | 30, 60, 72, 120 | 10, 12, 15 | DC12V, DC24V | IP20, 65, 66, 67 | RGB, RGB+W, RGBWW, 2700–6500K |
SMD 5730 | 30, 60 | 10 | DC12V, DC24V | IP20, 65, 66, 67 | 3000–6000K, RGB, yellow |
SMD 2835 | 60, 120, 168, 180, 240 | 5, 8, 10, 14 | DC12V, DC24V | IP20, 65, 66, 67 | 2700–6500K, RGB, amber |
SMD 3014 | 60, 120, 240 | 8, 10, 15 | DC12V, DC24V | IP20, 65, 66, 67 | 2400–6500K, CRI 75 / 80 / 90 Ra |

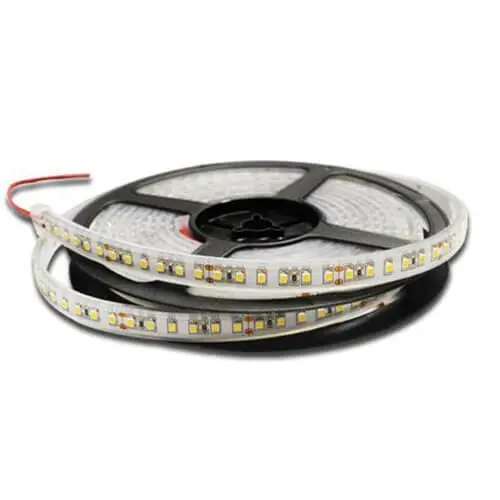

SMD 3528 | 60, 120, 240, 360, 480 | 5, 8, 10, 14, 28 | DC12V, DC24V | IP20, 65, 66, 67 | 3000–6000K, RGB, yellow |
Standard roll length is 5 m. Operating temperature -20°C to 50°C, storage temperature -40°C to 80°C. Custom specifications on request.
Technical selection
Choose the Right LED Strip Configuration
Use these key specifications to narrow options before requesting a detailed datasheet or sample.
| Selection Factor | What to Confirm | Por que é importante |
|---|---|---|
| Tensão & run length | 12V / 24V / higher-voltage options where available | Voltage drop, power supplies and wiring plan |
| Brilho | W/m, lm/m, LED density | Required output, efficiency and heat |
| Light appearance | CCT, CRI, COB/SMD, uniformity | Visual comfort and light quality |
| Ao controle | Dimming, RGB/RGBW, tunable white, controller | Compatibility with project controls |
| Ambiente | IP rating, operating conditions, profile | Suitability for installation conditions |
| Instalação | Cut interval, width, adhesive, connector | Site installation and maintenance |
Aplicações de projetos

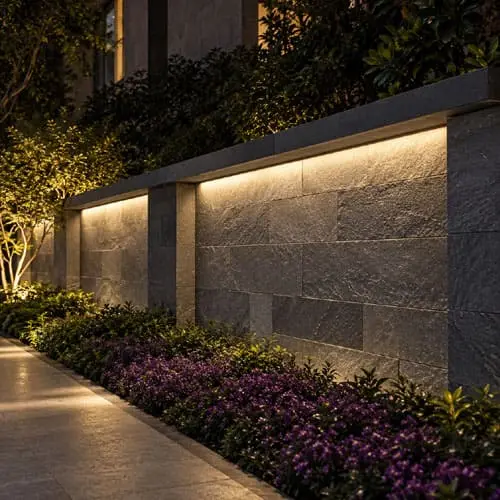

Choose LED Strip Light by Application
Different environments require different profiles, light outputs, control systems and protection levels.
FABRICAÇÃO & QUALIDADE
How We Make and Test Our LED Strip Lights
Every roll is made and tested, from raw material inspection to shipping inspection.

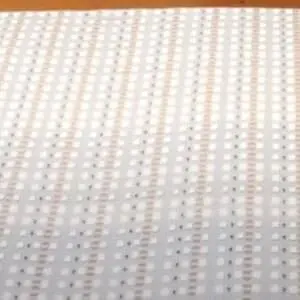

Inspeção de Matérias Primas
LED chips, FPC boards and resistors are checked before they enter production.

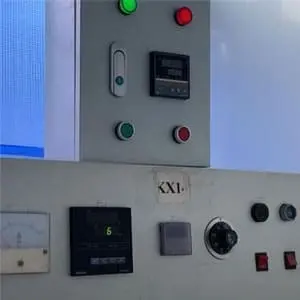

Desumidificação
Materials are baked for 12 hours at 80°C to remove moisture before soldering.

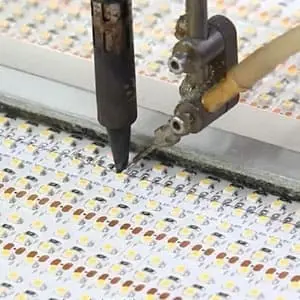

SMT and Reflow Soldering
Solder paste is printed, LEDs are placed by automated SMT machines.
Solder Joint Inspection
Joints, including segment welds are inspected under 1000x magnification.

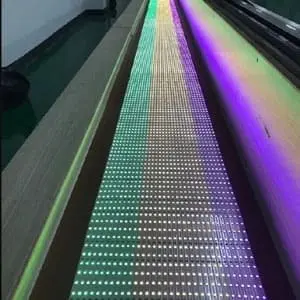

Teste de envelhecimento
Strips run for 12 hours to find early failures.

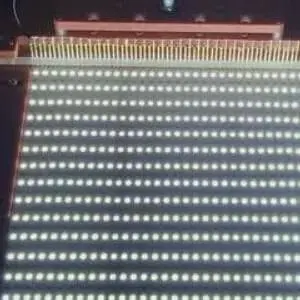

Low Current LED Test
Every strip is powered at low current to find dead or faulty LEDs.
Verificação de consistência de cores
Color temperature is measured with integrating sphere, then strips are compared side by side against a white acrylic reference.
Final Shipping Inspection
Final inspection is conducted to verify the number of packages, labels, and markings, ensuring compliance and readiness for shipment.
Costumização & OEM
Custom LED Strip Lights and OEM Service
Tell us the application, length, voltage and brightness. We develop samples and produce to your specification, with your own packaging and labels if you need them.
Option | What you can specify |
|---|---|
Comprimento | Standard 5 m rolls. Custom length and cut points, up to 100m per roll |
Color and CCT | Single color, 2700–6500K, RGB, RGB+W, RGBWW |
IRC | 80+ and 90+ Ra, full-spectrum CRI 98 |
Largura da placa de circuito impresso | Depends on chip type, see the specification table |
Tensão | DC12V, DC24V, DC36V, DC48V |
Brilho | LED density and chip type chosen to your lumen target |
Classificação IP | IP20, IP65, IP66, IP67 |
Embalagem | Custom boxes and labels |
Customization Process
Avaliação de requisitos
You send the application, drawings or a sample, and target quantity.
Estudo de viabilidade
Our engineers check that the design can be built to your specification.
Desenvolvimento de amostra
We make samples to your specification.
Teste e Refinamento
Samples are tested and adjusted until you approve them.
Documentação e Preparação
We prepare datasheets and production files.
Produção em massa
Production runs under the same quality control as standard orders.
What affects your quote? Selected components, performance requirements, quantities, customization, testing requirements, packaging and delivery terms.
WHY CHOOSE CST
Por que escolher nossa faixa de luz LED
Flexible customization, reliable quality checks and practical project support help you source LED strip lighting that meets your specifications and purchasing requirements.
Flexible Customization
LED strip configurations tailored to project requirements, including voltage, CCT, CRI and installation needs.
Controle de qualidade
Premium quality LEDs providing high lumen outputs with 80+ and 90+ CRI. All product goes through multiple quality checks prior to shipping.
Flexible Order Support
Sample arrangements, order coordination and packaging options based on product and quantity.
Técnico & Apoio ao Projeto
Assistance with product selection, specifications and technical requirements for different applications.
Related products & resources
LED Strip Accessories & Installation Resources
Aluminum Profiles & Montagem
Consider profiles, diffusion and thermal management during installation.
Installation Guidance
Review wiring, cut points and installation constraints for your exact model.
Perguntas frequentes
LED Strip Light FAQ
As respostas dependem do produto e do projeto. Envie seu briefing para uma revisão mais específica.
Standard LED strips start at 100–200 m per model. Custom orders start at 500-1000m, depending on the specification. Lead time is 3-7 working days for standard orders and 15-20 days for custom orders after sample approval. Send us the quantity and the date you need the goods, and we will confirm the schedule in the quotation.
Yes. Samples cost refunded on a bulk order and take 3-7 dyas to make. Shipping is paid by buyer. Tell us the application so we send the right model.
Use a constant voltage power supply that matches the strip voltage, sized for the total strip wattage with some room (typically about 20%). 24V strips lose less brightness over long runs than 12V strips, so they are the better choice for long installations.
Yes. Cut only at the marked cut points. The distance between cut points depends on the LED density and voltage of the model, for example every 3 LEDs on 12V SMD 2835, After cutting, reconnect with a solderless connector or by soldering.
Waterproof options are IP65, IP66 and IP67, IP68, with TPU or silicone coating. Strips fit into aluminum profiles that match the strip width. Send us the profile dimensions and we will recommend a PCB width and IP rating that fit.
Brightness drops along a long run of low voltage strip. The maximum run per power feed depends on the voltage and the power per meter. For longer installations, feed power at both ends or at several points.
Yes. We supply wholesalers, brands and importers. Mixed models can be quoted together, subject to the MOQ per model. Tell us the models and quantities and we will quote them in one offer.
Request a Quote for LED Strip Lights
Share your intended installation, specifications and quantity. If you do not have complete details, we can help review suitable options.
