Architectural Flood Lights for Facade & Landmark Projects
Architectural flood lights for building facades, bridges, landmarks and outdoor architectural details. Compare power, beam angle, light color and voltage options to select the right fixture for your project.
- Multiple Beam Angles
- White / RGB Options
- AC & Low Voltage
- Outdoor IP-Rated
Options vary by model and configuration.
PROJECT SELECTION
Choose by Your Project Requirements
Start with the lighting effect and power supply your project needs. We can help identify suitable fixture options.
Architectural Accent Lighting
Explore fixture options for columns, facade details and selected architectural features.
WHAT TO CONFIRM
Target size, mounting distance, beam angle and other issential details.

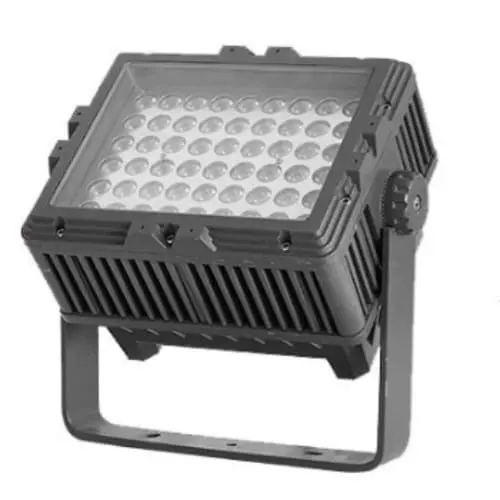

Wide-Area Facade Lighting
Discuss coverage requirements for larger facade sections and broader illumination.
WHAT TO CONFIRM
Facade dimensions, mounting position and light distribution.
Low Voltage Architectural Floodlight
Explore suitable architectural lighting fixtures for projects requiring a low voltage power supply.
WHAT TO CONFIRM
Required voltage, cable layout and installation conditions.
- Images show representative fixtures. Final model, optics and voltage options require confirmation.
Selection paths may overlap depending on project requirements.
BEAM ANGLE & OPTICS
Choose the Right Beam for Architectural Flood Lighting
Match your architectural flood light to the mounting distance, target area and desired effect. Compare narrow, medium and wide beams for building facade lighting.
Narrow Beam
10°–20°
Consider a narrow beam architectural floodlight for columns, architectural details and focused accents.
SELECTION FOCUS
Target width and projection distance.
Medium Beam
24°–45°
Explore medium beam for facade sections, monuments and architectural accent lighting.
SELECTION FOCUS
Coverage and beam overlap.
Wide Beam
60°+
Consider wider beams for larger facade areas where broader illumination coverage is required.
SELECTION FOCUS
Facade area and light spill.
Need Continuous Linear Wall Washing?
For continuous and uniform wall illumination, explore LED wall washer lights.
- Beam ranges illustrate selection principles. Availability varies by model; confirm the selected optics for your project.
PRODUCT SERIES
Architectural Flood Light Series
Select from compact, high-output, narrow-beam and low-voltage architectural floodlights for different mounting distances and
lighting effects.

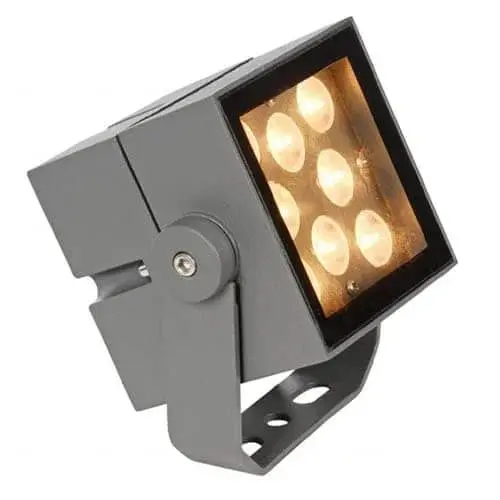

Square Architectural Flood Light
A flexible square range for comparing power, beam and voltage options across different facade zones.
POWER: 12 / 24 / 36 / 48W
VOLTAGE: AC 85–265V / DC 24V
BEAM ANGLE: 5° / 15° / 30° / 45° / 60° / 90° / 120
LIGHT COLOR: WW / NW / CW / RGB / Purple / Yellow
IP RATING: IP65 / IP67
LEDs EFFICIENCY: SMD3030 · 90–150 lm/W

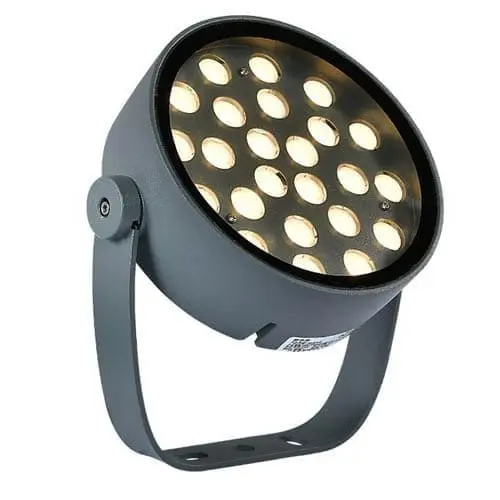

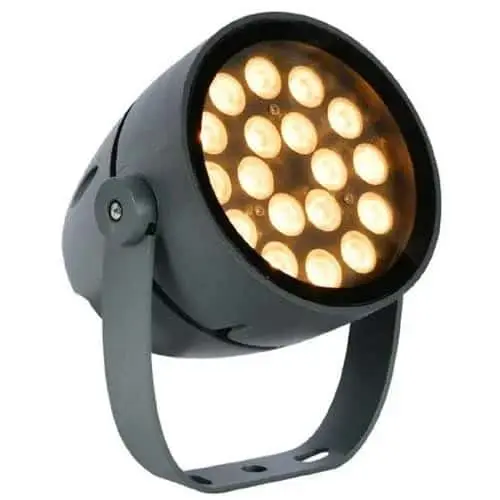

Round Architectural Flood Light
A round-format range for architectural flood and accent applications
requiring multiple power sizes.
POWER: 18 / 24 / 36 / 48 / 54 / 72 / 150W
VOLTAGE: AC 85–265V
BEAM ANGLE: 120°
LIGHT COLOR: WW / NW / CW / RGB / Purple / Yellow
IP RATING: IP66
LEDs EFFICIENCY: SMD · 90–100 lm/W
Narrow Beam Architectural Flood Light
A focused-beam range for columns, details and controlled accent
lighting where target width and projection distance matter.
POWER: 3W / 5W / 9W / 12W / 24W / 36W / 48W
VOLTAGE: AC 85–265V / DC 24V
BEAM ANGLE: 10° / 15° / 30° / 45°
LIGHT COLOR: WW / NW / CW / RGB /Yellow
IP RATING: IP66
SHELL COLOR: Gray / Black / Customized

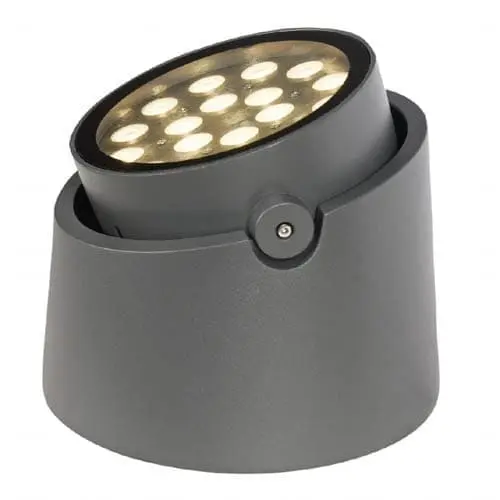

Tree Architectural Flood Light
An architectural accent range for landscape integrated structures and selected vertical features.
POWER: 18 / 24 / 36 / 48 / 54 / 60W
VOLTAGE:AC 85–265V / DC 24V
BEAM ANGLE:15° / 24° / 36° / 60°
LIGHT COLOR: WW / NW / CW / RGB / Yellow
IP RATING: IP66
LEDs EFFICIENCY: SMD · 100–110 lm/W
The products shown on this page represent only part of our available range. More models and configurations are available on request. Different projects may require different specifications or customized solutions.
APPLICATIONS
Architectural Flood Lighting Applications
Match the fixture format and beam to the target surface, mounting distance and intended visual effect.
Building Facades
Controlled flood or accent lighting for commercial and
architectural facades.
Bridges
Highlight structural elements, towers and bridge
features with selected beam angles.
Landmarks & Monuments
Focused illumination for architectural details and
landmark visibility.
Columns & Vertical Features
Narrow-beam lighting for columns, pillars and vertical
architectural elements.
Landscape Architecture
Accent lighting for architectural structures integrated
with landscape environments.
Commercial Exterior Spaces
Architectural lighting for hotels, retail developments
and mixed use projects
SELECTION GUIDE
How to Choose the Right Architectural Flood Light
Use these five project inputs to narrow the suitable product series before confirming a model and photometric file.
Define the Target
Record the facade area, column, feature or landmark dimensions that need illumination.
Measure the Mounting Distance
Confirm setback, mounting
height and aiming position.
These affect beam selection and required output.
Choose the Lighting Effect
Decide whether the priority is a focused accent, broader flood coverage or continuous wall washing.
Confirm Electrical Conditions
Provide the available voltage, cable layout and any project control requirements for review.
Verify the Model
Confirm power, optics, light
color, IP rating and available
technical documents for the
selected model.
Selection principle
Start with the target and distance, then compare beam and power. Final selection depends on the model and project conditions.
AVAILABLE BY MODEL
Technical Documents
Use the product model or project requirements to confirm which files are available.
Product Datasheet
Technical specifications and configuration details for a confirmed model.
CONFIRM BY MODEL
Photometric File
IES or LDT files may be available for selected models and optics.
CONFIRM BY MODEL
Instalação & Wiring
Instructions and wiring information depend on the selected fixture and voltage.
AVAILABLE BY MODEL
Test / Compliance Documents
Document availability depends on the product and destination-market requirements.
CONFIRM FOR PROJECT
Document availability varies by product and project requirements. Contact us with the model or project details to confirm available files.
PROJECT INFORMATION REQUIRED
Help Us Compare Suitable Options
Share the core installation and procurement details so the product range can be narrowed before quotation.
- Installation height / distance
- Target area dimensions
- Required lighting effect
- Light color / control requirements
- Available voltage
- Quantity & destination market
EXPLORE MORE
Related Outdoor Lighting
Compare adjacent product categories when the project calls for general area lighting or continuous facade washing.
Holofotes LED
For general commercial and industrial outdoor area lighting.
LED Wall Washers
For continuous linear facade washing and grazing effects.
Iluminação externa
Explore additional outdoor lighting categories for project applications.
Perguntas frequentes
Architectural Flood Light FAQ
Answers to common product selection and document questions.
Narrow beams are generally used for columns, details and longer projection distances, while medium and wider beams cover larger facade areas. The final selection depends on installation distance, target dimensions and the desired lighting effect.
Architectural flood lights are typically used for controlled spot, accent or flood illumination. Wall washers are designed for more continuous and uniform linear illumination across a wall or facade.
Available light colors vary by model. Current product ranges include white-light and color options, while RGB or other control requirements should be confirmed for the selected fixture.
Please provide the target dimensions, installation distance or height, desired lighting effect, light color, voltage, quantity and destination market.
The current architectural floodlight range includes AC and low-voltage options with outdoor IP-rated configurations. Exact voltage and IP ratings should be confirmed by model.
Datasheets and other technical files are available for selected products. Send us the required model or project information so we can confirm the documents available.
Find the Right Architectural Flood Light for Your Project
Share your application, installation conditions and required lighting effect. We can help you compare suitable product options and prepare a project quotation.
