أضواء غسالة الجدار LED
Linear LED wall washers for building facades, bridge features and landscape walls.
CST Lighting supplies LED wall washers to project contractors, tender buyers and distributors. We handle product selection, configuration and order coordination, and name the production source for each series in the quotation.
Have a facade elevation or BOQ? Send it with your requirements.
Rating stated for each model in the datasheet.
Compatibility stated per model and controller.
Length, optics and connections where feasible.
Model specific files provided on request.
APPLICATION SELECTION
Start with Your Project
Choose the installation context, then compare the reference formats. Final selection follows the wall geometry and the model’s photometric data.

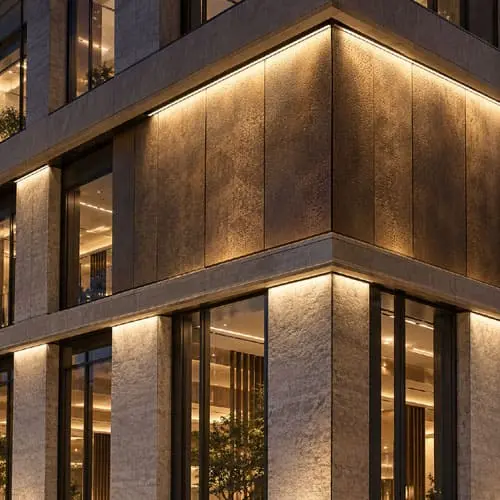

Long Facade Runs
For walls and facade bays with long continuous runs, where mounting space and cable routing are planned together.

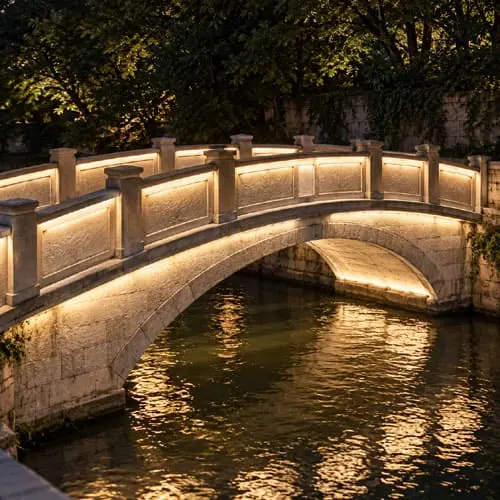

Structures & Recesses
For bridge structures, recesses and architectural features where access, vibration, exposure and protection requirements are project specific.
Walls & Textured Surfaces
For boundary walls and textured surfaces where aiming access and viewing angle shape the lighting effect.
These are starting points, not fixed assignments. Indoor use and special environments need a separate model review.
SERIES & SPECIFICATIONS
Compare the Product Formats
The images identify housing styles. Request a model-specific datasheet to confirm order codes and performance; a housing photo alone does not establish an optical or electrical specification.

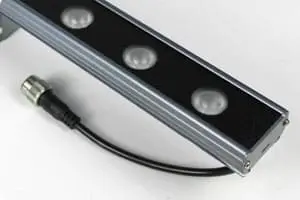

Slim Linear Format
A narrow housing with individual lenses and an end connection lead.
Selection starting point
Facade ledges and restricted mounting spaces.
Installation review
Cable exit, connector clearance and housing dimensions.

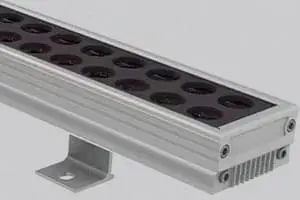

Multi Row Lens Format
A broad optical face with several rows of lenses and mounting feet.
Selection starting point
Projects comparing alternative optical layouts.
Installation review
Distribution, mounting footprint and fixture setback.

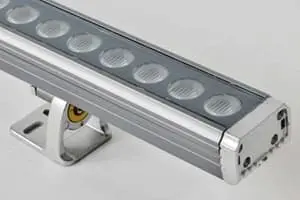

Bracket Mounted Format
A linear aluminum housing with a clear front and external brackets.
Selection starting point
Walls and features with an accessible mounting surface.
Installation review
Bracket geometry, aiming range and installation clearance.
Output and optics differ by color mode: RGBW adds a dedicated white LED for cleaner whites than RGB mixing. Contact us for full specifications.
Selection & Layout
Wall Washing or Wall Grazing?
Define the desired effect before choosing wattage or beam angle. The same fixture position gives different results on different surfaces.

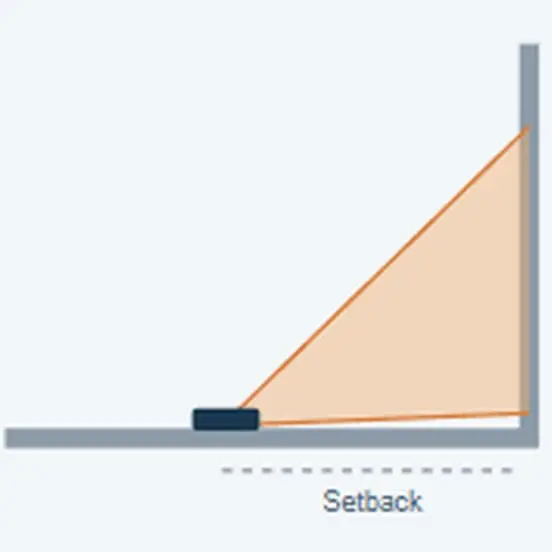

غسيل الحوائط
A broad, even illuminated surface. Setback, spacing and distribution are chosen together.

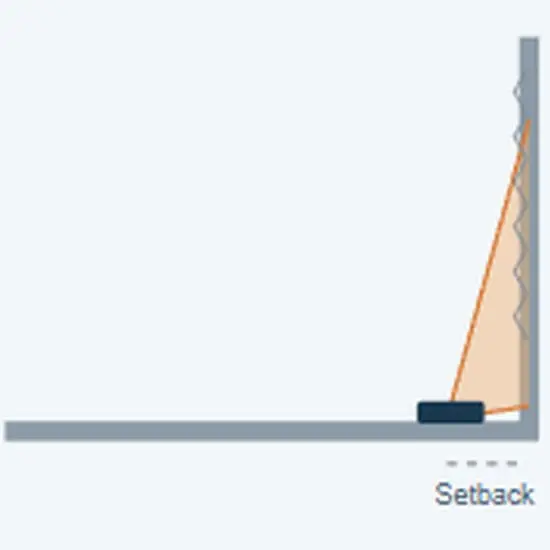

Wall Grazing
A close-set arrangement that emphasizes surface relief and shadow. Texture and aiming need particular attention.
Four Dimensions That Matter
Wall height
Height of the surface to be lit.
Fixture to wall distance
Setback from the wall to the fixture.
Fixture spacing
Distance between fixtures along the run.
Total run length
Available installation length.
Beam angle, spacing and expected uniformity are set from the model’s IES/LDT data, with a mock-up where the project requires it.
CONTROLS & SYSTEM
Define the Connections and Supply Scope
A wall washer is one part of the installation. Model, voltage and control mode are specified as one system, and the quotation lists every item included.
Power / Driver
input, location and circuit limits.
Control / Signal
protocol, channels and addressing.
Wall Washer Run
connectors, leads and mounting.
Electrical & Run Limits
The maximum number of fixtures per run depends on power per fixture, cable size and length, voltage drop and driver capacity. Each model’s limit is stated in its datasheet. There is no universal daisy chain count.
DMX512 & Other Controls
DMX512: DMX MODES / CHANNELS. Controller compatibility, channel mode, addressing, signal cabling and termination are specified per model. DALI or 0–10V is offered only where a compatible driver version exists: DALI / 0–10V AVAILABILITY.
Quoted as needed: luminaires, drivers or power supplies, controllers, signal and power leads, connectors, mounting accessories. Only the items listed in your quotation are included. Connectors, run limits and controllers are listed per system.
RELIABILITY & COMPLIANCE
Match the Evidence to the Project
Protection, service life and compliance are stated for the exact model and configuration you order.
Enclosure & مواد
IP and IK ratings, housing material, finish and operating temperature are listed for each model.
التقارير & حياة
Request relevant photometric files and test records. Any lifetime claim needs stated operating conditions and a supporting basis.
Inspection & ضمان
Agree operating, color/control and assembly checks, required market documents and product-specific warranty terms before order approval.
For tenders: send your compliance schedule. We check the proposed model against each requirement and tell you which evidence is available and which is not, before you commit.
CUSTOMIZATION & ORDERING
Lock the Configuration Before Production
Review length, optics, CCT or color mode, housing finish, cable exits, connectors and packaging. Feasibility depends on the selected series.
Brief & Feasibility
Share the application, dimensions, quantity and technical requirements.
عينة & موافقة
Agree the configuration, sample checks and supporting files before production.
إنتاج & مراقبة الجودة
fix the order specification, inspection scope and production schedule.
شحنة & يدعم
Review packing, documents and shipment arrangements; agree after sales terms in the order.
For tenders: send your compliance schedule. We check the proposed model against each requirement and tell you which evidence is available and which is not, before you commit.
MOQ
Depends on Model
Sample lead time
3-7 Working Days
Bulk lead time
10-20 working days after sample approval
ضمان
1-3 years depnds on model and request
تصنيع المعدات الأصلية & Wholesale Supply
Discuss feasible length, finish, labeling and packing options. For repeat supply, agree the configuration and change-control requirements.
Configuration Drives Price
Optics, LEDs, drivers, controls, housing and required test evidence all affect cost. Compare quotations against the same specification and supply scope.
TECHNICAL FAQ
Before You Finalize the Specification
Answers to common installation, control and procurement questions.
It depends on the wall height, the beam angle and the effect you want. A close setback emphasizes texture and puts brighter patches near each fixture. A larger setback with a wider beam gives a more even wash but spreads light beyond the wall.
Beam angle sets how far the light reaches up and across the wall. Narrow beams suit tall walls and longer throw distances. Wide beams suit short setbacks and low walls.
There is no universal number. It depends on power per fixture, cable size and length, voltage drop and driver capacity.
DMX512: DMX MODES / CHANNELS. DALI and 0–10V are offered only where a compatible driver version exists: DALI / 0–10V AVAILABILITY. Tell us the controller or system you plan to use and we confirm compatibility for the selected model.
Choose by exposure. IP65 is dust-tight and protected against water jets, IP66 against powerful water jets, and IP67 against temporary immersion. Ratings by model. The rating applies to the fixture as supplied; cable and connector joints on site must be sealed to the same level.
Only the items listed in your quotation are included. We can quote luminaires alone, or with drivers or power supplies, controllers, signal and power leads, connectors and mounting accessories.
Tell Us About Your Wall Washer Project
Send your application, quantity and installation details. We reply within 24 hours with suitable series and the information needed for a quotation.
- Project country and application.
- Approximate quantity and target delivery.
- Layout, specification or reference images.
- Electrical, documentation and budget requirements.
No complete specification yet? We can guide you step by step.
